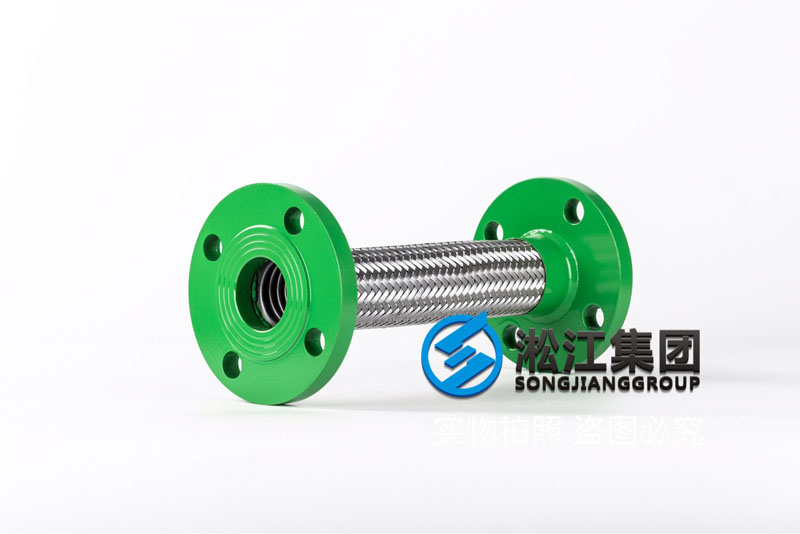

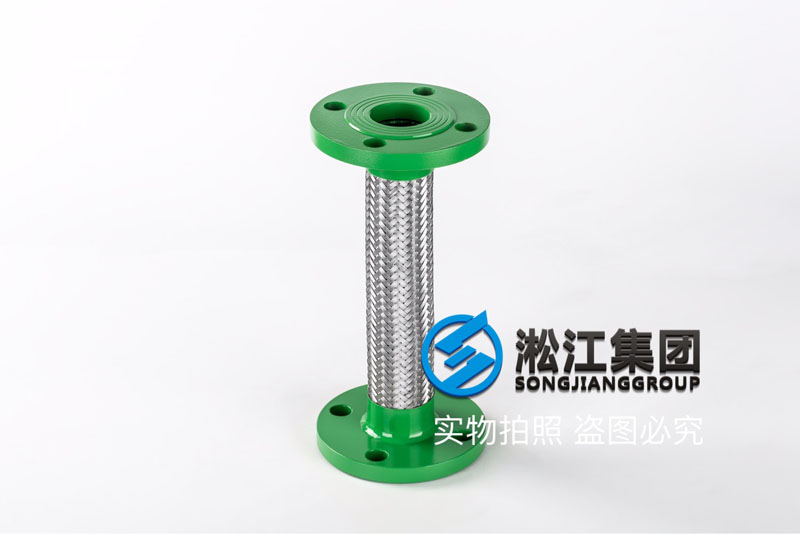

DN40不銹鋼防震接頭
Stainless steel shock resistance joint
上海淞江減震器集團有限公司官方網站為您介紹：DN40不銹鋼防震接頭信息，淞江集團是一家從事工業管道減震防震的企業，在高速發展的今天，您的管道如果還沒有設計減震和防震系統，那么，你的工程并將不屬于新型科技環保工程。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 stainless steel shockproof connection information, Songjiang group is a company engaged in industrial pipeline for earthquake damping enterprises, the rapid development of today, if there is no design your pipe cushioning and shockproof system, then you will not belong to engineering and new environmental protection science and technology engineering.
產品名稱：DN40不銹鋼防震接頭
型號：JTW
口徑：DN40
壓力：16kg
法蘭材質：碳鋼鍛打
波紋材質：不銹鋼304
編織網材質：不銹鋼304
產品長度：L=300mm
優點：使用壓力高、壽命長。
缺點：只能減震、不能吸收管道的噪音，使用成本高，那么需要又能減震、又能降噪，成本還低的產品是：限位橡膠接頭。
品牌：淞江集團
產地：上海
生產廠家：上海淞江減震器集團有限公司
Product Name: DN40 stainless steel shock resistance joint
Model: JTW
Caliber: DN40
Pressure: 16KG
Flange material: carbon steel forging
Corrugated material: stainless steel 304
Woven net material: stainless steel 304
Product length: L=300mm
Advantages: high pressure and long life.
Disadvantages: it can only absorb shock, not absorb the noise of pipeline, and has high use cost, so it needs shock absorption and noise reduction. The product with low cost is the limited rubber joint.
Brand: Songjiang group
Origin: Shanghai
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
DN40不銹鋼防震接頭材料說明：

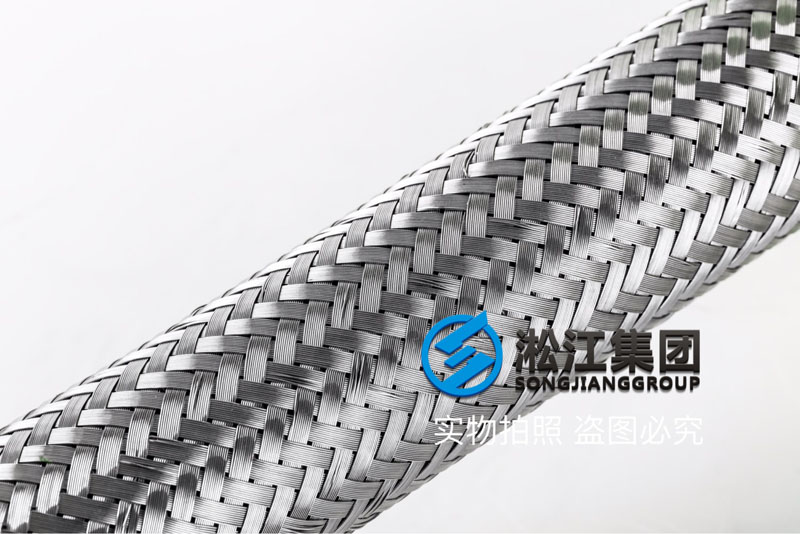

波紋管體、編織網：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。

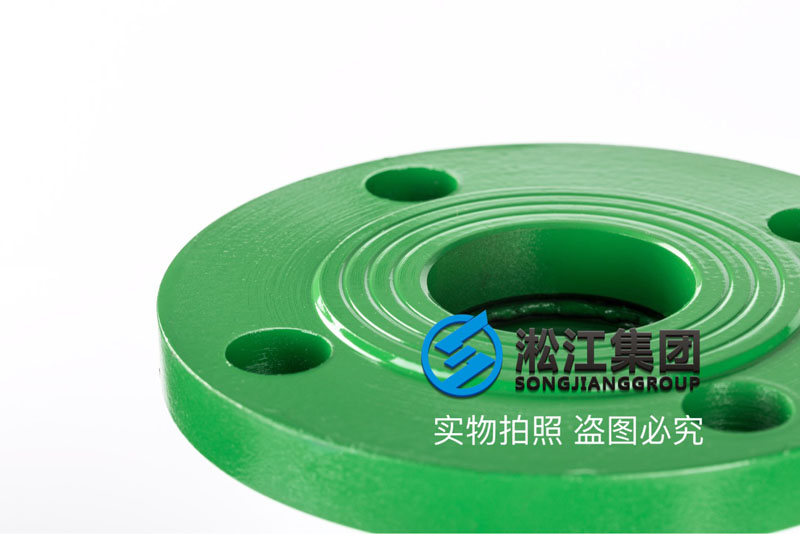

連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
Material description:
Corrugated pipe and braided mesh: in order to prolong the, all stainless steel 304 production is used to support all kinds of spectrometer detection. The fake one is ten, the thickness is all thicker than the same industry standard.
Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.
Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.
以上DN40不銹鋼防震接頭信息，來源于上海淞江減震器集團有限公司官方網站產品中心，如需了解更多請點擊：
高品質金屬軟管查看。
